Rotating Cone Climber

[U7078-0109 Typ C]

Rotating Cone Climber with 2 Rings

Cone Climber with ladder, swing seat, climbing rope and trapeze.
Recommended age: 6
Safety certificates: TÜV according to DIN 1176.
Approved for domestic and commercial use.



Materials:
Ropes: USA-CORD Long-Life, 16 mm
Made of PPM (Polypropylene-Multifilament) with steel core.
Poles: galvanized steel; red powder coated

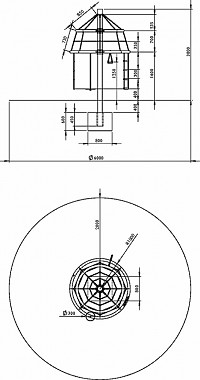

Dimensions:
Playlevel: 130-300 cm
Max. fall height: 300 cm
Ø Rings: 200 cm lower, 160 cm upper ring
Poles: 152.4 x 4.5 x 3850 mm
Safety perimeter: 600 cm



Assembly:
A 80 x 80 x 60 cm concrete foundation is required.
For critical fall height of 3000 mm safety surfaces according to EN 1177 chart A.1 must be used.
F. ex. sand with a 0.2 to 2.0 mm grain size.
